CDISC-ODM Export Format
The CDISC Operational Data Model (ODM) was developed to promote data collection, archival, and interoperability for clinical research studies. Castor CDMS supports CDISC ODM-XML for the study structure and data export. The base version of the standard is ODM-XML version 1.3.2
This feature is currently available upon customer request without any additional fee.
To enable it, please contact Castor support at support@castoredc.com and provide the study ID where you would like to have this functionality enabled.
Structure export
- Partial structure import (for example, importing only a visit or a specific form) is not supported currently
- The following field types are not exported: Add repeating data button, Add survey button, Grid, Remark, Repeated measures. Please note that the field related attributes are also not exported: Field width value, Measurement unit field setting, Help/Info text, Data validation, Exclude field in data exports (Advanced tab), Encryption settings.
- Several field types will be converted upon the export:
| Initial field type |
Resulting field type |
|---|---|
| Dropdown | Radio button |
| Checkbox | Radio button |
| Calculation | Summary |
| Slider | Number |
| Upload file | Text multiline |
| Number date | Text multiline |
| Year | Number |
| Randomization | Text multiline |

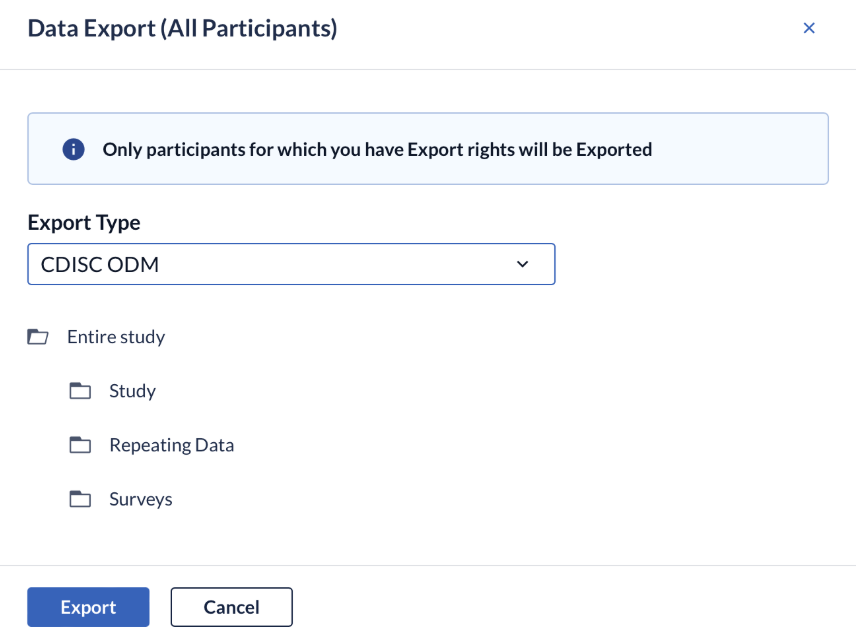

Data export
Data for these field types will not be exported: Add repeating data button, Add survey button, Grid, Remark, Repeated measures.
The date format is: DD-MM-YY.
For more information on how to export study structure and data, please consult these articles:
